Structures of prefabricated wooden element houses

ESTPANEL OÜ designs the structures of buildings according to...

  • construction legislation applicable in the state
  • location and climate zone of the building
  • standards of energy efficiency
  • design criteria issued for the construction of the building
  • architectural and finishing solution of the building

Elements are usually used for assembling the following for the buildings...

  • external walls
  • load-bearing internal walls
  • walls separating apartments
  • ceilings
  • floors for installing on post, pile or strip foundations

Elements can also be used for assembling simpler roofs and light partitions.

Materials necessary for assembling the structures to be assembled on site are included in the assembly according to an agreement.

Most used structural solutions of elements

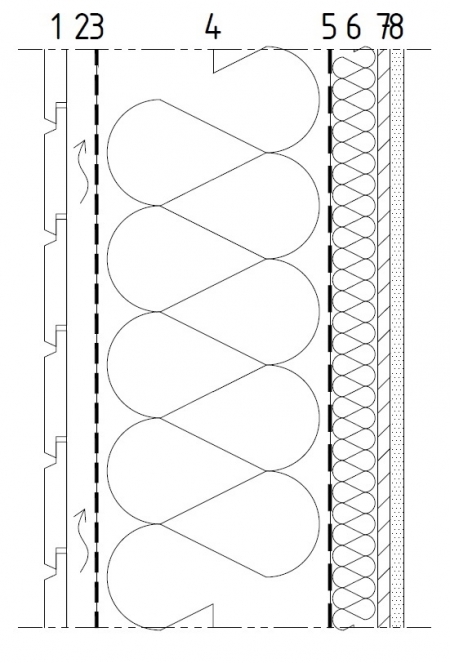

1. Standard structure of the external wall element

1. Boards 21 x 120, horizontal, 1 x primed, 1 x painted
2. Lath 28 x 70 mm
3. Wind barrier fabric
4. Frame 45 x 220 C24, reinforced T-profile with a lath
5. Insulation 220 mm
6. Vapour barrier
7. Additional frame 45 x 45
8. Insulation 50 mm
9. OSB 12 mm
10. Plasterboard 12.5 mm

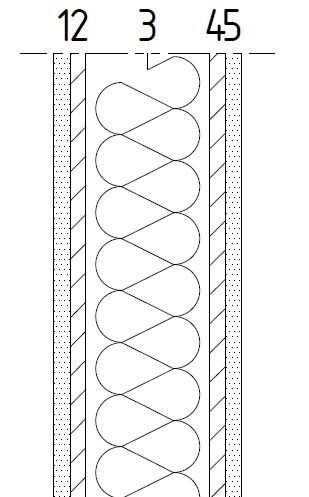

2. Standard structure of a load-bearing wall element

1. Plasterboard 12.5 mm
2. OSB 12 mm
3. Framework 90 or 120 mm according to the static
4. Insulation 100 or 120 mm according to framework thickness
5. OSB 12.5 mm
6. Plasterboard 12.5 mm

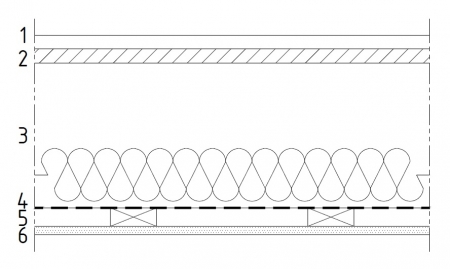

3. Standard structure of the ceiling element

1. Floor finishing
2. Durelis tile 22 mm
3. Ceiling beams 45 x 220 C24
4. Insulation 100 mm, in the outer perimeter 220 mm
5. Mesh
6. Lath 28 x 70
7. Plasterboard

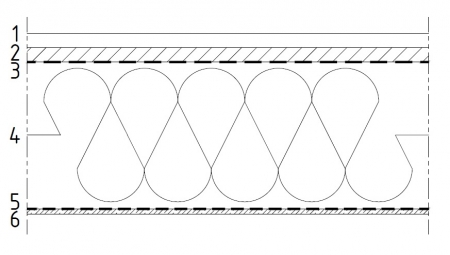

4. Standard structure of the floor element

1. Floor finishing
2. Durelis tile 22 mm
3. Vapour barrier
4. Floor beams 45 x 220 mm
5. Insulation 220 mm
6. Wind barrier fabric
7. Cement fibre board 8 mm
